Ever wondered what it would be like if all your smart devices teamed up under one big, all-knowing "brain"?

Well, thanks to the magic of the Internet of Things (IoT), that wild dream is actually becoming a reality.

Imagine your fridge, thermostat, and even your coffee maker having a little group chat—sending data, getting tasks done, and making your life easier (or at least keeping your fridge from becoming a science experiment).

The secret sauce behind this tech utopia?

It's all about the architecture—how the different building blocks of IoT come together and play nice.

Of course, the quality of these blocks (and how well they get along) will make or break the system.

At SB Infowaves, the best AI development company in Kolkata, we have loads of ways to structure an IoT setup, but in this article, our expert developers will let you in on their own hands-on, battle-tested approach to creating a scalable, flexible IoT architecture that works like a charm.



Basic Elements of IoT Architecture

Think of IoT architecture as the ultimate team of tech superheroes, each with their own special power.

Together, they make sure that the data collected by your devices' sensors doesn’t just float off into the digital void, but gets safely stored and processed in a big data warehouse (think of it as a fancy data vault).

Meanwhile, the devices’ actuators are the muscle of the operation, carrying out commands sent through a user app—like obedient little robots.

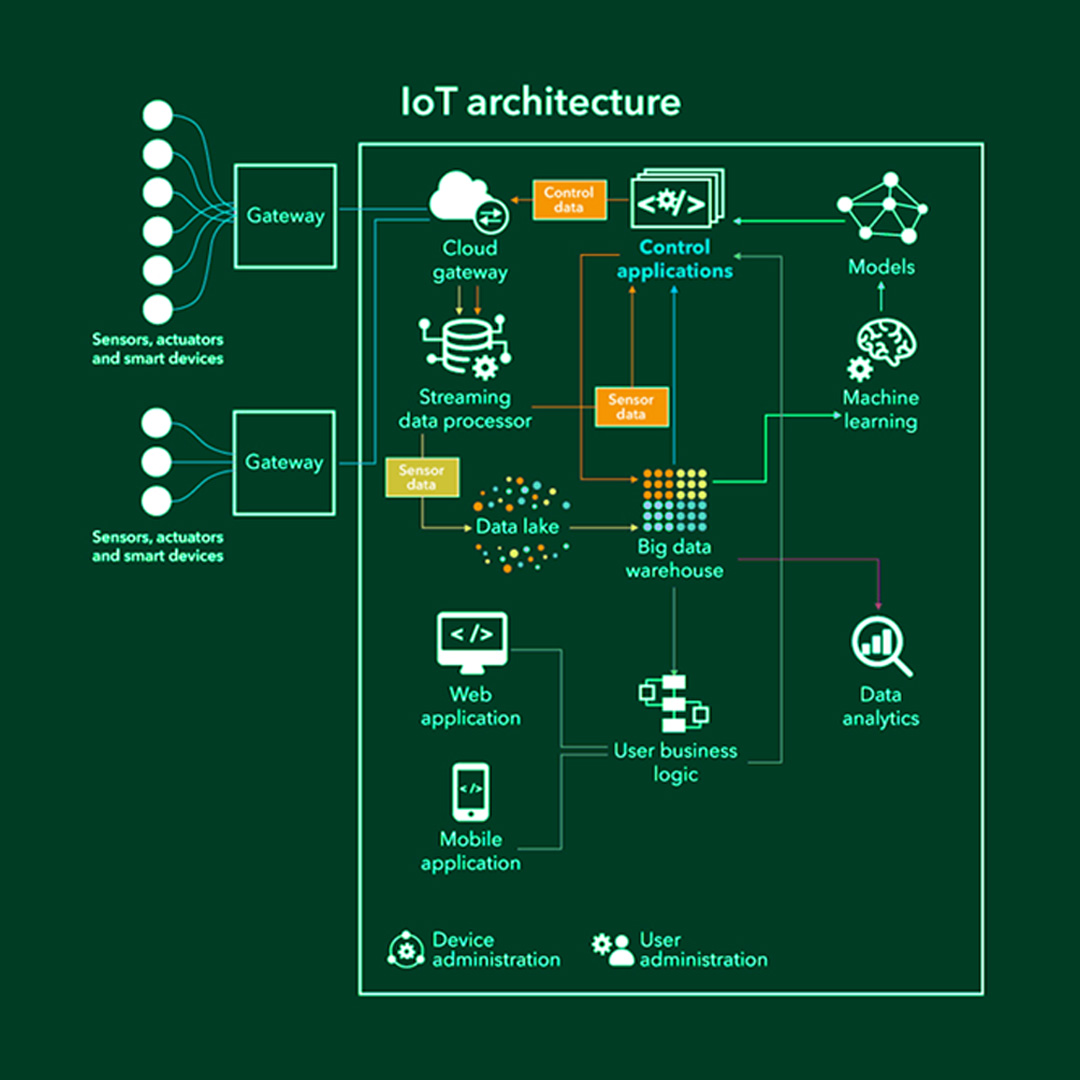

Below, you’ll find a diagram showcasing our take on how these building blocks come together for the perfect IoT setup.

 Things

Yes, "things" is the technical term here. In IoT lingo, a "thing" can be anything from a smart fridge that reminds you to buy milk to a street lamp that knows when to light up.

These things are equipped with sensors to gather data (like a nosy neighbor), and actuators to actually do something with that data—whether it's turning off the lights, opening a door, or adjusting the speed of a machine.

And when we say "things," we mean everything imaginable: cars, buildings, production machinery, even your fancy rehab equipment.

Now, here's the kicker—not all sensors need to be physically glued to these things. Sometimes, they’re more like a distant observer, keeping an eye on what’s happening around a thing, making sure everything’s running smoothly in its little corner of the universe.

Gateways

Think of gateways as the bouncers of the IoT world. Data can't just waltz into the cloud without passing through these guys first.

They stand at the door, making sure everything's in order—giving things access to the cloud and vice versa.

But they don’t just wave data through; no, they’ve got some serious skills. Gateways are like data pre-processors, trimming down all the unnecessary info (because who needs a play-by-play of your fridge's temperature every second?) before sending it off to the cloud for storage and deeper analysis.

And when the cloud wants something done? The gateways make sure those commands get back to the things, which then spring into action, thanks to their handy actuators.

So, in short, gateways are the unsung heroes making sure the whole IoT system doesn’t end up in chaos.

Cloud Gateway

Picture the cloud gateway as a master translator, diplomat, and bouncer all rolled into one. It compresses data (think squeezing a huge suitcase into a carry-on), ensuring everything is secure while it travels between field gateways and cloud IoT servers.

But that's not all—it's also a protocol wizard, speaking whatever language the field gateways happen to prefer.

Whether it’s MQTT, HTTP, or some other tech dialect, the cloud gateway is fluent in all of them, making sure everyone’s talking the same language and no data gets lost in translation.

Streaming Data Processor

Think of the streaming data processor as the ultimate traffic cop for your data. It ensures that every bit of incoming information makes it safely to the data lake and controls apps without taking any wrong turns or getting into any accidents along the way.

No data goes missing, no files get corrupted—it's like the world's most efficient delivery service. If data had a motto, it would be "neither lost nor damaged, guaranteed!"

Data Lake

Picture a data lake as a giant, digital pond where all the data from your connected devices go to chill.

The best part? It’s in its natural state—untouched, unprocessed, just hanging out. Big data can arrive in "batches" (like someone delivering a truckload of fish) or in "streams" (like a gentle flow of water, only instead of water, it’s endless information).

When you need to make sense of this data and fish out some meaningful insights, you just dip in, grab what you need, and move it over to the big data warehouse for processing.

Big Data Warehouse

Imagine a big data warehouse as the VIP section of the IoT data club. Only the clean, structured, and well-behaved data gets in.

This is where the meaningful stuff lives, having been fished out of the chaotic data lake, which is more like a wild swamp full of every scrap of data your sensors have ever sent (some useful, some… not so much).

In the warehouse, everything is neat and organized—data is matched, context is clear (like knowing exactly where a sensor is installed), and it even keeps track of all the commands your control apps have sent to the things.

Basically, the warehouse is where the magic happens—structured insights galore, without the noise of the data lake’s swamp creatures.

Data Analytics

Data analysts are like digital detectives, diving into the big data warehouse to uncover hidden trends and make sense of it all.

Armed with charts, diagrams, and infographics (because nothing says "I found something important" like a good pie chart), they can reveal how devices are performing, spot inefficiencies, and figure out ways to make your IoT system run smoother—kind of like tuning up a car, but with way more graphs.

And when they’re not busy finding patterns and correlations that would make Sherlock Holmes proud, they’re feeding those insights into control algorithms.

So, the next time your smart toaster adjusts its settings perfectly, you can thank data analytics for that little bit of wizardry.

Machine Learning and the Models it Creates

Machine learning is like giving your IoT system a brain upgrade—one that gets smarter over time. It helps build better, sharper models for control applications (because who doesn’t want their devices to be a little more on point?).

These models don’t just sit around gathering dust either; they’re regularly updated, like software patches but way cooler, based on the data your IoT system has been hoarding in its big data warehouse.

Once data analysts give the thumbs-up—after running their tests to make sure the new model won’t, you know, go rogue—it gets deployed to your control applications, making them more efficient.

So, your system keeps improving, like a diligent student cramming for exams, except without the stress.

Control Applications: The Bossy Side of IoT

Control applications are like the micromanagers of the IoT world, constantly sending commands and alerts to actuators.

Imagine this: your smart home’s windows get an automatic order to open or close based on a weather forecast. "Oh, it might rain? Better close those windows!" Or, when your poor plants are feeling a bit parched, the watering system doesn’t wait for you to notice—it gets a command to water them ASAP.

In industrial settings, sensors keep an eye on equipment, and when things start to look dicey, an IoT system will go full-on alarm mode, shooting automatic notifications to field engineers like, “Hey, fix this before it’s too late!”

But control apps don’t just shout orders; they’re also keeping receipts. The commands they send to actuators get stored in a big data warehouse, just in case you need to investigate later.

You know, like when your smart window refuses to close, and you're left wondering, "Was it the connectivity? The gateway? Or is the window just lazy?" Keeping records also helps with security—if a bunch of weird or excessive commands start showing up, your IoT system might start raising an eyebrow (and maybe an alert) about a potential security breach or other fishy business.

Control apps can be rule-based, like a strict teacher sticking to the lesson plan, or machine-learning-based, where the app’s brain gets smarter over time, updating its models regularly—once a week, once a month, or whenever it feels like it, depending on the system’s needs.

Even though these apps make life easier, it’s not a bad idea to keep some human control in the mix.

After all, you don’t want your IoT system deciding to flood your garden or turn your house into an icebox because it got a little too enthusiastic about following commands.

Emergencies happen, or sometimes the system is just a little...off. It’s always good to have a way to hit the “nope” button when things get out of hand.

User Applications

In the IoT world, user apps are like the ultimate remote control for your smart stuff.

These nifty software components are what let you connect with your IoT system and boss around all your "things"—whether it’s your home, car, or even that overly smart coffee maker.

With a mobile or web app in hand, you can check in on the status of your gadgets, send them commands, or set them to do your bidding automatically (because who doesn’t want their house to basically run itself?).

So, whether you’re turning on the lights, adjusting the thermostat, or getting an alert that your laundry’s done, these apps are your personal command center, making sure everything stays under your watchful eye.

And, if you're feeling fancy, you can even set up automatic behaviors—because who has time to manually manage notifications or trigger actions when your IoT system can do it for you?

Device Management

Let’s face it: just slapping IoT devices in place and hoping for the best is about as effective as giving a cat a bath and expecting it to love you for it.

To keep these tech marvels functioning smoothly, you need some serious device management.

Here’s the lowdown on what it takes to keep everything running without a hitch:

1. Device Identification: First things first—let’s make sure that what you’ve got is the real deal. We want to avoid any shifty impostors slipping into your network with their dubious software and unreliable data.
   Think of it like a VIP club for devices; only the trusted ones get in!

2. Configuration and Control: Once you’ve got your genuine devices, it’s time to fine-tune them for their roles in the IoT system.
   Some settings are a one-and-done situation (like assigning a unique device ID), while others might need a little tweaking here and there (like adjusting how often they send messages). It’s all about keeping them in tip-top shape!

3. Monitoring and Diagnostics: Just like you keep an eye on that friend who’s always one bad decision away from chaos, you need to monitor your devices.
   This ensures they’re performing well and staying secure—reducing the risk of any tech meltdowns that could lead to some serious headaches.

4. Software Updates and Maintenance: Last but not least, don’t forget about those all-important software updates! They’re like a spa day for your devices, adding new features, fixing pesky bugs, and patching up any security holes.
   Because, let’s be honest, no one wants their devices to be as vulnerable as a lone cat in a dog park.

User Management

While we’re busy wrangling devices in the IoT universe, we can’t forget about the humans—the folks who think they run the show!

User management is like the backstage pass for your IoT system, ensuring that only the right people get in and can mess with the controls.

This process involves figuring out who’s who—who the users are, what roles they play, what access levels they’ve got, and who actually owns what.

It’s a bit like organizing a party: you’ve got to decide who gets to enter, who gets the VIP treatment, and who’s only allowed to sip punch in the corner.

User management lets you add or boot users (sorry, not everyone can stay!), tweak their settings, and control what information they can see or actions they can take—because we definitely don’t want someone accidentally launching a rocket or, worse, turning off the coffee maker!

Plus, it keeps tabs on user activities, so you know exactly who did what and when—because, let’s face it, every good system needs a bit of detective work.

Security Monitoring

Let’s face it: in the world of the Internet of Things, security is like that overprotective parent at a middle school dance—always hovering and worrying about what could go wrong.

With all these connected gadgets chattering away and producing mountains of data, we need to make sure they’re not sending out an open invitation to cyber-criminals.

After all, if your smart toaster starts broadcasting its Wi-Fi password to the world, it could lead to some serious kitchen chaos!

But it gets even scarier: those sneaky cyber-villains could target the "brain" of your entire IoT system.

Imagine them hijacking your smart home and turning your lights into a disco party while you’re trying to relax. Not cool!

To keep those digital bad guys at bay, it’s a good idea to log and analyze the commands zipping between your control apps and your devices.

It’s like keeping a close eye on your kids at that dance—monitoring their every move and storing all that data in the cloud for safekeeping.

This way, you can catch security breaches before they turn into full-blown disasters.

Plus, by identifying patterns of suspicious behavior, we can collect those red flags and compare them to the logs from our IoT systems.

It’s like having a crystal ball that helps us spot potential intruders before they can wreak havoc on our beloved smart devices.

So, let’s keep the cyber-villains out and our smart homes safe!

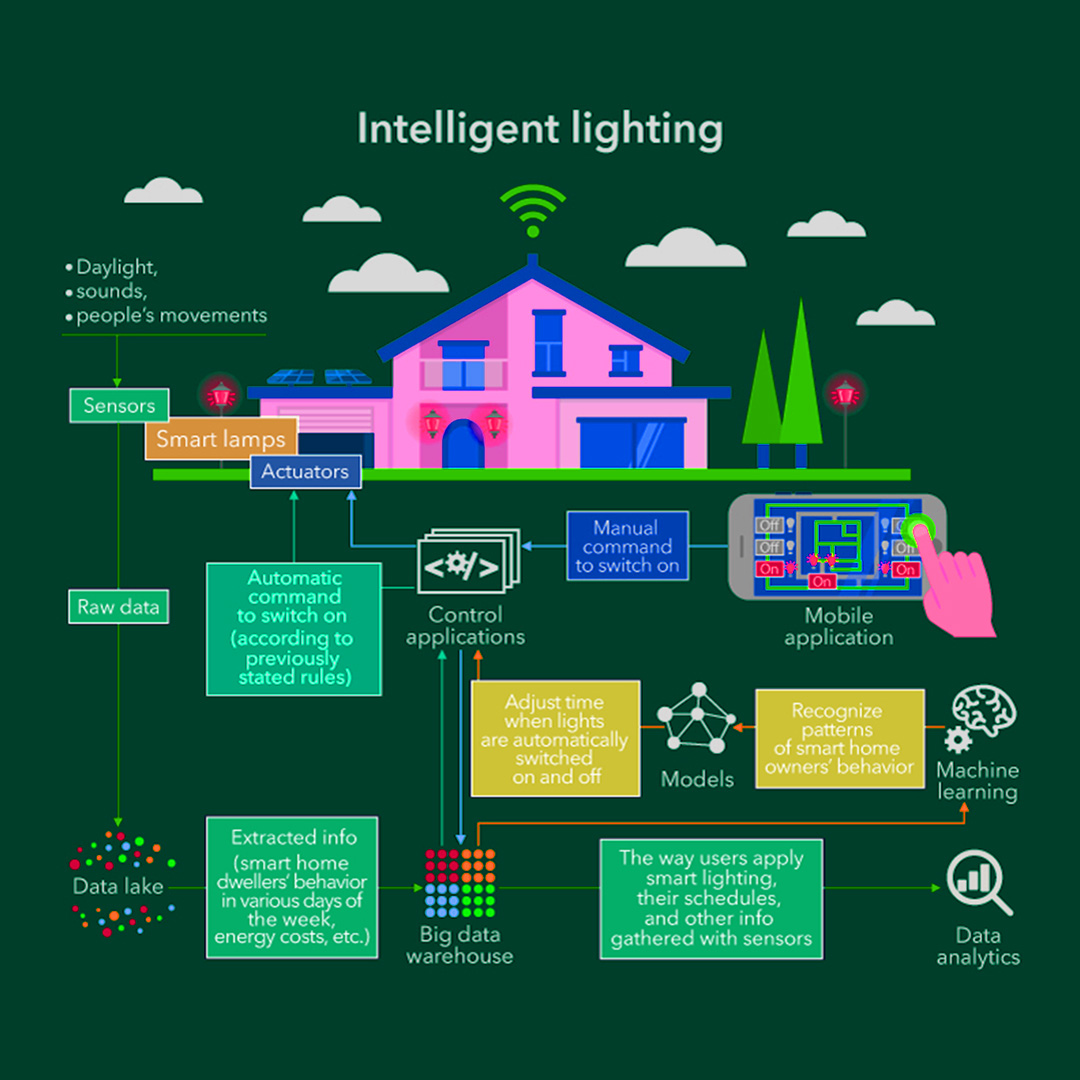

IoT Architecture Example – Intelligent Lighting

Let’s dive into an example of IoT architecture by shining a light (pun totally intended) on smart yard lighting as part of a smart home.

This setup is a brilliant way to show off how IoT solutions can make our lives easier while also being kind to the planet—because who doesn’t want to save energy while looking like a genius?

Smart lighting systems can work in all sorts of dazzling ways, and today we’ll spotlight a few basic options.

Get ready to see how these clever little lights can brighten your evenings and keep those pesky energy bills from getting too bright themselves!

 Basic Components

Let’s break down the essentials, shall we? First up, we have sensors—these little guys are like your overly curious friends, always gathering information about their surroundings. They’re on the lookout for everything from daylight to sounds to the sneaky movements of people (no privacy here!).

Next, we’ve got our lamps, which come equipped with actuators to turn the light on and off—because who wouldn’t want a light switch with a personal touch?

Think of them as the introverts of the lighting world: they only turn on when necessary!

Now, where does all this juicy data go? Enter the data lake, which is like a vast pool of raw information straight from the sensors.

It’s a bit chaotic and unfiltered—kind of like a teenager's bedroom. But don’t worry; we also have a big data warehouse to save the day.

This is where all that raw data gets cleaned up and organized into neat little packages, revealing smart home dwellers' behavior throughout the week, energy costs, and all sorts of other fascinating tidbits.

So, whether you’re a night owl or an early bird, the data warehouse has your habits all sorted!

Manual Monitoring and Manual Control

Imagine this: you're lounging on your couch, and instead of getting up to flip a switch, you whip out your mobile app to control your smart lighting system.

This app comes complete with a fancy map of your yard—because, let’s be honest, who doesn’t want a digital treasure map for their outdoor lights?

With a few taps, you can see which lights are strutting their stuff and which ones are taking a little break.

Feeling a little bossy? You can send commands to the control applications, which then relay the messages to the lamp actuators like a game of high-tech telephone.

And the best part? The app will even give you a heads-up when a lamp is on the verge of retirement—saving you from the dreaded “Oops, it’s pitch black out here!” moment.

Who knew smart lighting could be this much fun?

Data Analytics

Picture this: data analysts are like detectives in the world of smart lighting.

They sift through all the juicy details—how users interact with their lights, when they flick them on or off (whether it's part of their master plan or just a case of the Mondays), and the treasure trove of info collected by sensors.

With this data, analysts craft and tweak the algorithms that control the lighting system, making it smarter than your average bulb.

But wait, there’s more! Data analytics also acts as the system’s personal trainer, assessing how well the IoT setup is flexing its muscles and spotting any pesky issues.

For instance, if a user turns off the light right after the system just turned it on (cue the dramatic music), it’s a clear sign that something’s amiss—like a confused dance partner stepping on toes.

When this happens, it’s time to roll up the sleeves and address those algorithm gaps before the lights start staging a rebellion!

Automatic Control’s Options and Pitfalls

So, here’s the deal: sensors are keeping a close eye on natural light levels, sending their data to the cloud like a diligent intern reporting on office coffee levels.

When the daylight dips below a certain threshold (because who wants to work in a cave?), control apps spring into action, firing off commands to the actuators to flick on the lamps. The rest of the time, those lamps are on a well-deserved break, living their best life in the “off” position.

But here’s where things get a little tricky. Our smart lighting system can be easily “baffled” by outside forces—think streetlights, nosy neighbors with floodlights, or that random glow from the neighbor's yard that could be a UFO.

If the sensors pick up too much extraneous light, they might think it’s party time and decide to turn off the lamps, leaving you stumbling around in the dark like a character in a horror movie.

To avoid this, our smart system needs to get a crash course in lighting factors and stash all that data in the cloud.

Now, when sensors are also monitoring motion and sound, it’s not as simple as flipping on the lights when someone sneezes or shutting them off in total silence.

You see, Fido has a knack for producing all sorts of sounds, and if the system mistakes his midnight zoomies for an intruder, you’ll be up all night battling phantom burglars.

So, the cloud needs to differentiate between human antics and pet shenanigans.

To tackle this, we can store sound samples in the cloud—like a Spotify playlist of all the various noises—and compare them with whatever comes from the sensors.

Machine Learning

Imagine your lights have become little psychologists, thanks to machine learning. They’ve studied the daily habits of their smart home owners, noting things like, “Ah, they leave for work at 8 a.m. and return at 7 p.m.”

With this intel, they can expertly time their performances, switching on just five minutes before you stroll in—like a butler flicking on the lights just in time for your grand entrance.

But wait, there’s more!

Over time, these smart systems become so savvy that they can pick up on unusual patterns. If the sensors notice that the house has been quieter than a library on a Sunday, they might start to wonder if you’ve taken an unexpected holiday.

In response, they can take action—occasionally turning on the lights to give the illusion that the place is bustling with activity, all while conserving energy like a savvy roommate who only pays their share of the utilities when it’s absolutely necessary.

Who knew lights could be so resourceful?

User Management Options

When it comes to managing users in your smart lighting system, think of it as casting for a reality show—everyone has a role!

You’ve got your “owner,” who’s the star of the show, wielding ultimate control over the system.

This person can change how the smart lights behave, monitor yard lamps like a vigilant garden gnome, and is the one whose commands always take precedence (because let’s be honest, nobody wants to see a light show meltdown when guests and inhabitants are giving conflicting orders).

Then we have the “inhabitants,” who get to switch the lights on and off—like the designated button pushers—without any of the fancy settings.

It’s like being given a remote control with all the fun channels locked!

Finally, we have the “guests,” who are basically on a limited VIP tour of the lighting system. They can turn lights on and off in some areas of the house, but sorry, no lighting magic near the garage—because no one wants to risk lighting up the neighbor’s DIY project by accident!

And let’s not forget about ownership!

With one system able to control over 100,000 households, it’s crucial that a smart home dweller can manage their own yard lights and not accidentally brighten up the neighbor’s garden party.

After all, nobody wants an unexpected dance-off in the driveway!

Instead Of A Conclusion

Our IoT architecture is meticulously crafted, consisting of several essential components that work synergistically to create a seamless experience:

1. Things: At the core of our architecture are the "things"—devices embedded with sensors that diligently gather data and actuators that execute commands dispatched from the cloud. These are the unsung heroes, tirelessly ensuring we stay connected and informed.

2. Gateways: Acting as the crucial intermediaries, gateways perform data filtering and preprocessing, ensuring that only the most relevant information makes its way to the cloud (and back). They also relay commands from the cloud to the devices, ensuring smooth communication.

3. Cloud Gateways: These specialized gateways ensure a robust transition of data between field gateways and central IoT servers. They are the linchpins that maintain the integrity and reliability of data flow.

4. Streaming Data Processors: These powerhouses distribute data from sensors to the relevant components of the IoT solution in real time. Think of them as the traffic directors in the bustling world of IoT.

5. Data Lake: Here’s where we store all the data—both valuable and otherwise. This flexible repository allows us to keep everything from critical insights to random bits of information that might just come in handy one day.

6. Big Data Warehouse: This is where we collect and store valuable data, transforming raw information into actionable insights that drive decision-making and innovation.

7. Control Applications: These applications send commands to actuators, ensuring that our systems respond dynamically to user inputs and environmental changes.

8. Machine Learning: By harnessing the power of machine learning, we generate models that empower our control applications, enabling them to adapt and optimize operations based on learned patterns.

9. User Applications: These intuitive interfaces enable users to monitor and control their connected devices effortlessly, enhancing user engagement and satisfaction.

10. Data Analytics: For those moments when manual processing is necessary, our data analytics tools allow for deep dives into data, uncovering hidden trends and insights.

Additionally, our architecture incorporates robust device and user management components, which are vital for ensuring the stable and secure functioning of devices and addressing user access issues.

When developing an IoT architecture for a specific solution, we prioritize consistency, ensuring every element is finely tuned to work harmoniously together; flexibility, allowing for the integration of new functionalities and logic as needed; and integration with enterprise systems.

This means seamlessly aligning our new IoT solutions with existing corporate IT infrastructures, such as ERP, MES, WMS, and delivery management systems, ensuring that the whole ecosystem operates as one cohesive unit.

Conclusion

At SB Infowaves, one of the best AI development company in Kolkata, we specialize in empowering businesses to scale through tailored IoT solutions.

From the initial roadmapping phase, where we help identify opportunities and define your vision, to the evolution of your IoT initiatives, our expert team is dedicated to guiding you through every stage of your journey.

We leverage cutting-edge technologies and data-driven insights to optimize operations, enhance customer experiences, and drive innovation, ensuring your business not only keeps pace with industry demands but thrives in a connected world.

Let us partner with you to unlock the full potential of IoT and take your business to new heights!
